Servo Gearhead Products Features
  Series Features
Premium Type
(Helical Gear)

planetary gearhead, gear reducer, gearbox, 行星減速機
  PHFR Series
Nominal Output Torque
 T2N:11Nm - 1900Nm
Ratio
 Single Stage:3/ 4/ 5/ 7/10/ 14/ 20
 Double Stage:15/ 20/ 25/ 30/ 35/ 40/ 50/ 70/ 100/ 140/ 200
Low Backlash

Single Stage:≦2 arcmin/ ≦4 arcmin/ ≦6 arcmin
 Double Stage:≦4 arcmin/ ≦7 arcmin/ ≦9 arcmin
High Efficiency
 Single Stage:≧95%
 Double Stage:≧92%
Low Noise
 62~74 dBA/1m
planetary gearhead, gear reducer, gearbox, 行星減速機

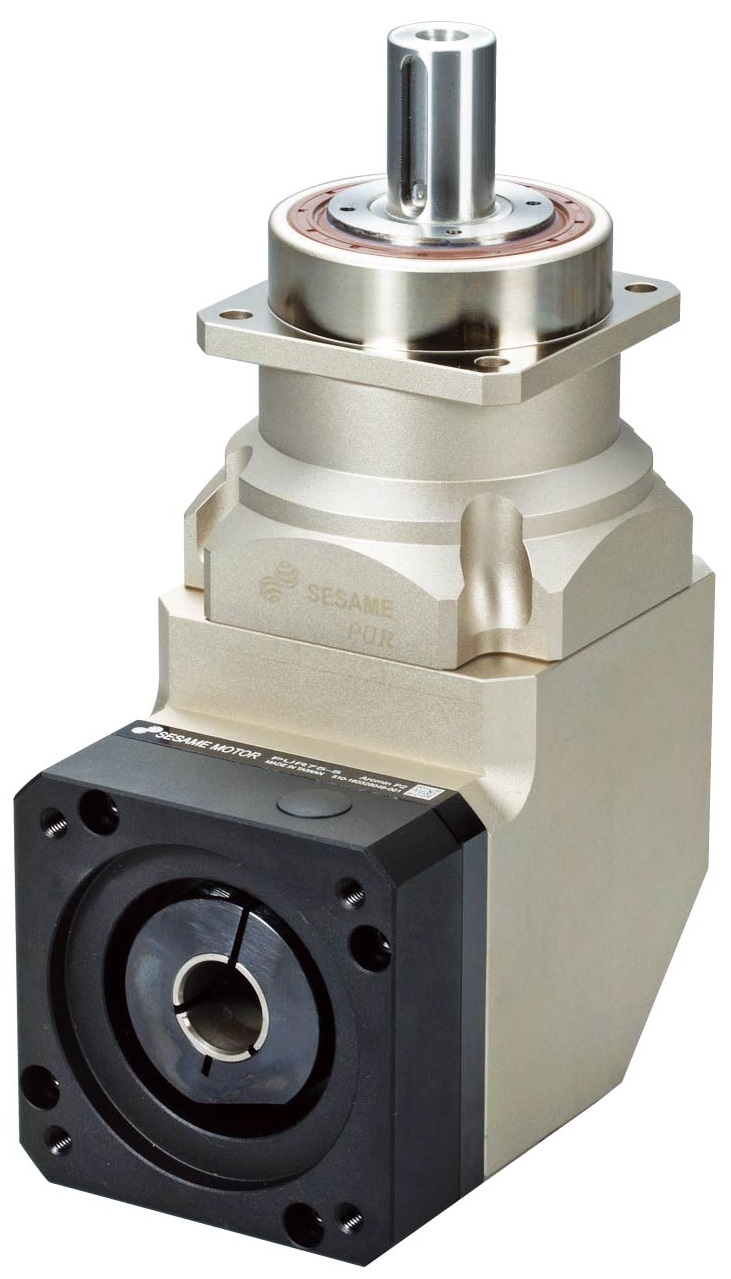

PUR Series

Nominal Output Torque
 T2N:37Nm - 2000Nm
Ratio
 單段:3/ 4/ 5//6/ 7/ 8/ 9/ 10/ 14/ 20
 雙段:15/ 20/ 25/ 30/ 35/ 40/ 50/ 70/ 80/ 90/ 100/ 120/ 140/ 160/ 180/  200
Low Backlash

單段:≦2 arcmin/ ≦4 arcmin/ ≦6 arcmin
 雙段:≦4 arcmin/ ≦7 arcmin/ ≦9 arcmin
High Efficiency
 單段:≧95%
 雙段:≧92%
Low Noise
 64~74 dBA/1m
Precision Type
(Helical Gear)
planetary gearhead, gear reducer, gearbox, 行星減速機

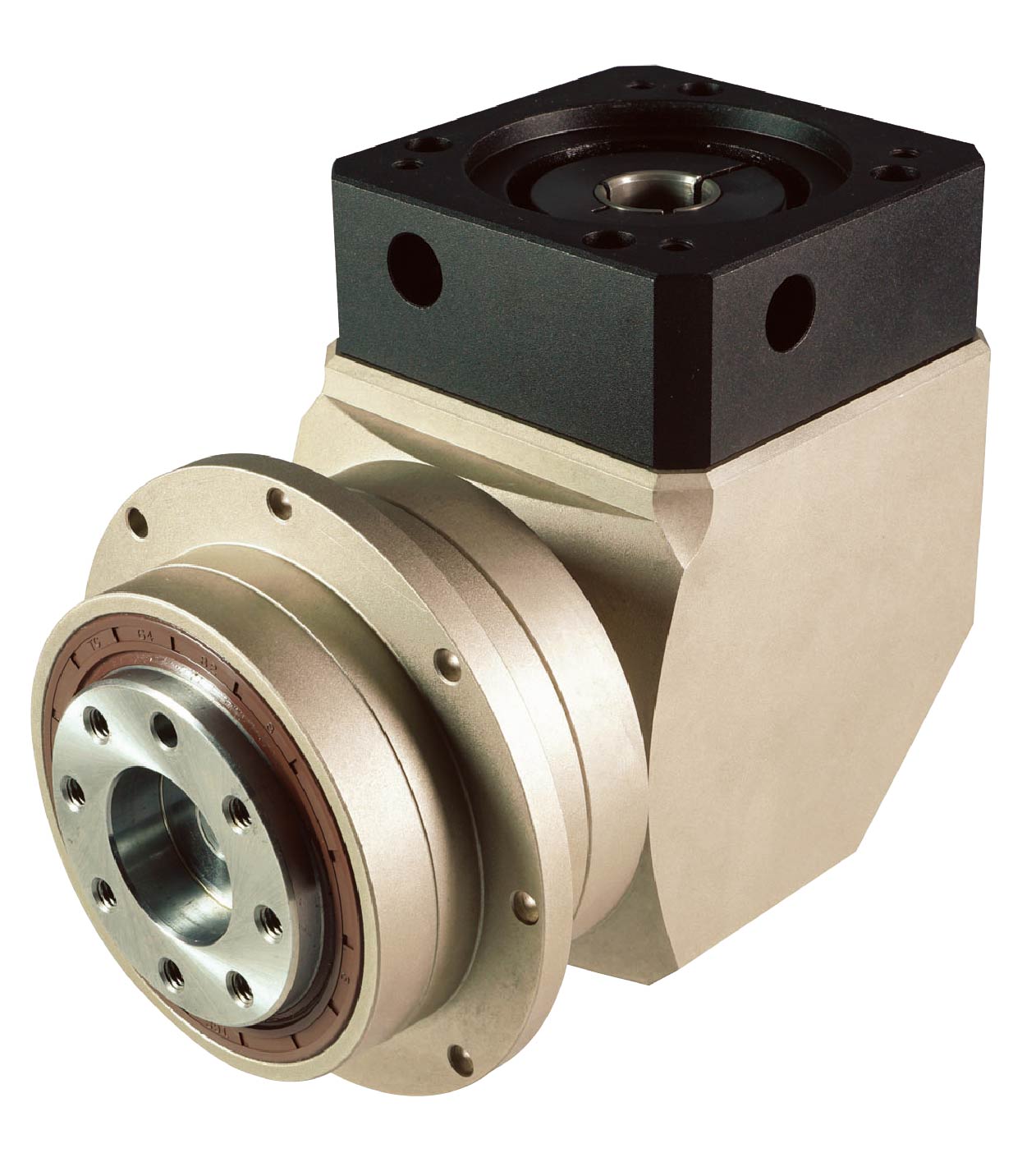

  PGFR Series
Nominal Output Torque
 T2N:11Nm - 150Nm
Ratio
 Single Stage:3/ 4/ 5/ 7/ 10/ 14/ 20
 Double Stage:15/ 20/ 25/ 30/ 35/ 40/ 45/ 50/ 70/ 100/ 140/ 200
Low Backlash

Single Stage:≦2 arcmin/ ≦4 arcmin/ ≦6 arcmin
 Double Stage:≦4 arcmin/ ≦7 arcmin/ ≦9 arcmin
High Efficiency
 Single Stage:≧95%
 Double Stage:≧92%
Low Noise
 62~68 dBA/1m
planetary gearhead, gear reducer, gearbox, 行星減速機

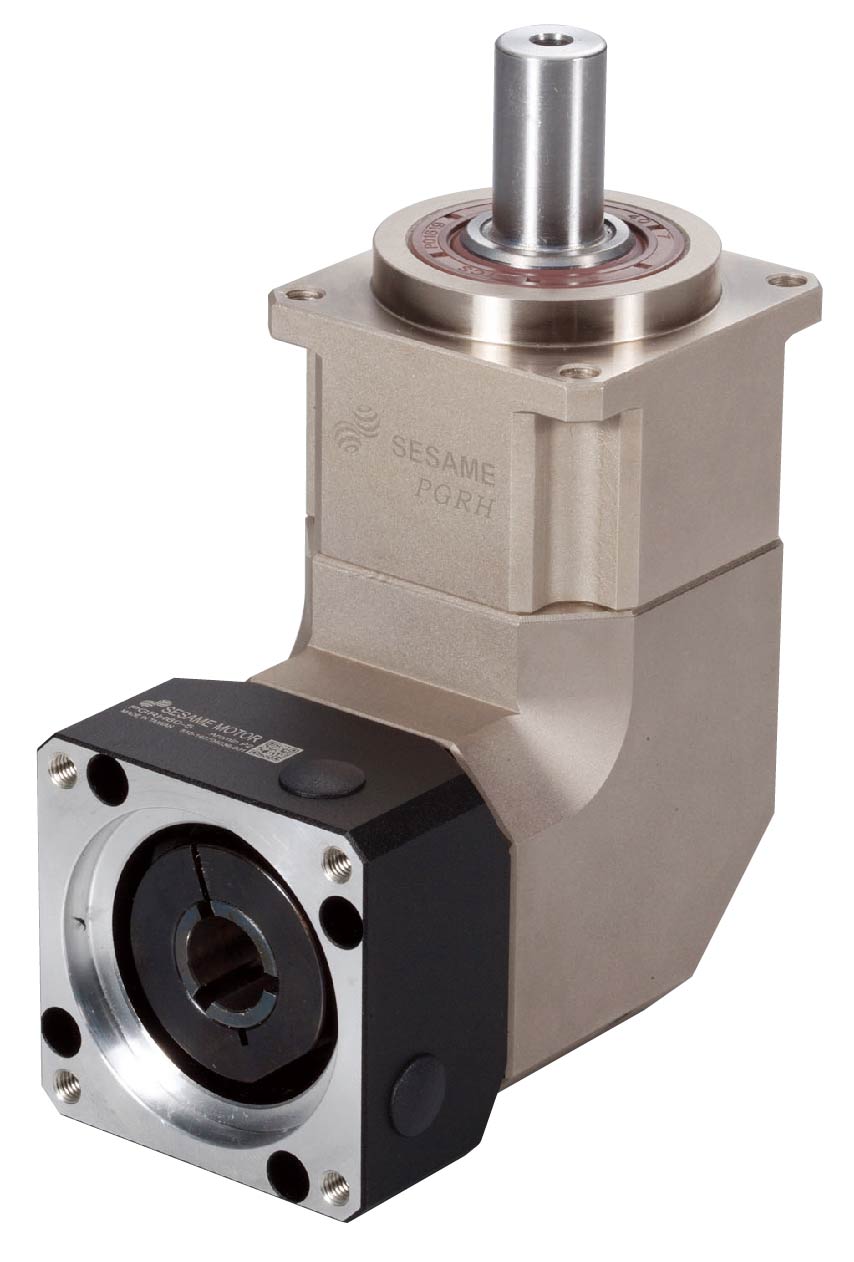

  PGRH Series
Nominal Output Torque
 T2N:11Nm - 1700Nm
Ratio
 Single Stage:3/ 4/ 5/ 6/ 7/ 8 /9 /10/ 14/ 20
 Double Stage:15/ 20/ 25/ 30/ 35/ 40/ 45/ 50/ 60/ 70/ 80/ 90/ 100/
                                 120/ 140/ 160/ 180/ 200

Low Backlash

Single Stage:≦2 arcmin/ ≦4 arcmin/ ≦6 arcmin
 Double Stage:≦4 arcmin/ ≦7 arcmin/ ≦9 arcmin
High Efficiency
 Single Stage:≧95%
 Double Stage:≧92%
Low Noise
 62~74 dBA/1m
Precision Type
(Spur Gear)
planetary gearhead, gear reducer, gearbox, 行星減速機

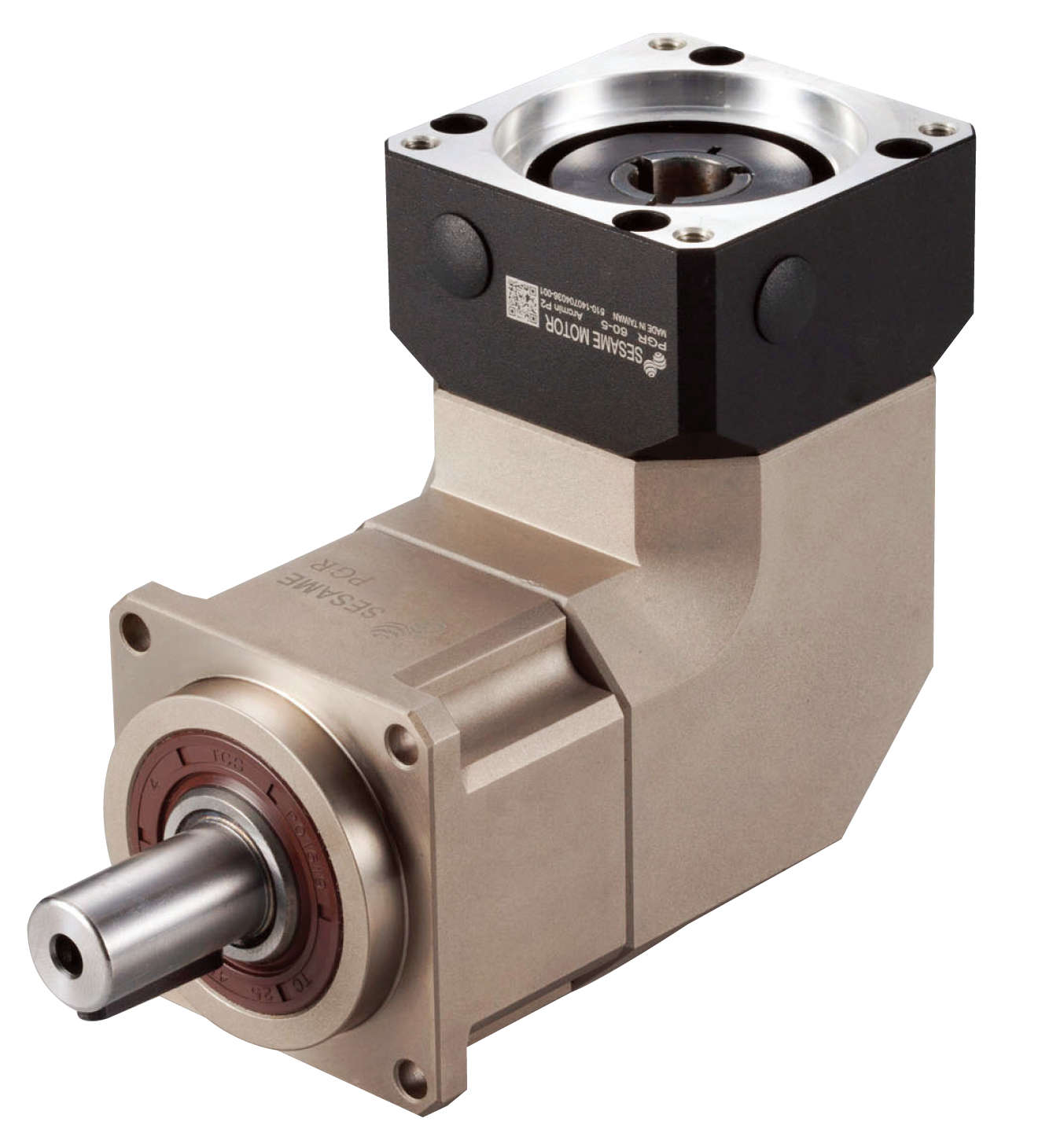

  PGR Series
Nominal Output Torque
 T2N:9.8Nm - 1670Nm
Ratio
 Single Stage:3/ 4/ 5/ 6/ 7/ 8 /9 /10
 Double Stage:15/ 20/ 25/ 30/ 35/ 40/ 45/ 50/ 60/ 70/ 80/ 90/ 100
Low Backlash

Single Stage:≦4 arcmin/ ≦6 arcmin/ ≦9 arcmin
 Double Stage:≦6 arcmin/ ≦8 arcmin/ ≦11 arcmin
High Efficiency
 Single Stage:≧94%
 Double Stage:≧90%
Low Noise
 65~80 dBA/1m
